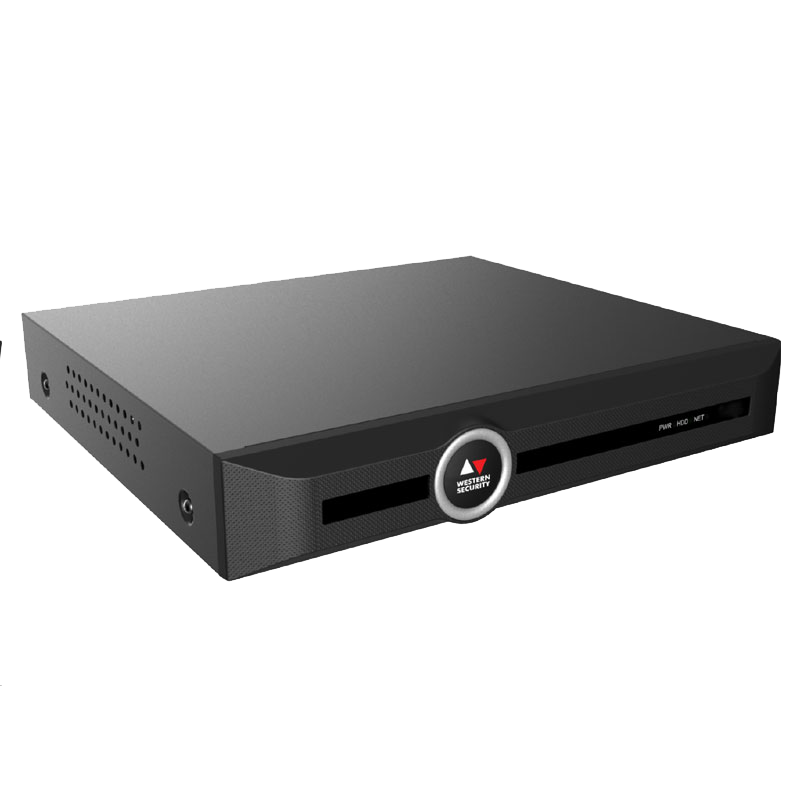

WSR-051V1

Network video recorder for 5 channels.
Maximum recording resolution 6mp. Bandwidth in 60Mbps, Bandwidth out 40Mbps. Recording compression Smart H.265+, H.264+. 1x HDMI output, 1x VGA output. 1x audio output. 1x RJ45 10/100Mbps network interface. 2x USB 2.0. The possibility of connecting 1HDD with a maximum capacity of 10TB. Perimeter Protection (Human/Vehicle Classification), VCA Search.

Category: Tags: ,
  • Up to 5-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 60Mbps/40Mbps
  • S+265, H.265, S+264, H.264 video formats
  • Max. decoding capability: 6MP(30fps)×1 or
  • 1080P(30fps)×4
  • 4-ch synchronous playback
  • Up to 10 TB capacity for each HDD
  • Simultaneous HDMI and VGA outputs
  • HDMI output at up to 4K resolution
  • 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
  • S+ 265 compression effectively reduces the storage space
  • by up to 75%
  • Support cloud upgrade

Data Sheet

Download

Technical specification.

User Manual

Download
